June 27 2017

There is an issue you need to be aware of when adding link fields to Oracle's Process Cloud Service (PCS) web forms using the new web form design tool.  It will be resolved in 17.3.3, but this blog provides a fairly simple workaround to the problem if you need to include a link on a form today.

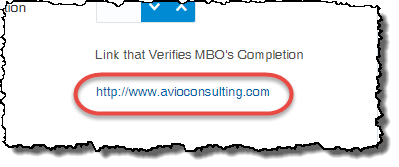

Link element placed on a PCS form











At runtime, the problem is that the value stored in the link's data element is lost once the form is submitted.  This means that the process data object cannot then map or use the element in the process downstream.

Audit trail detail leaving activity with link on form

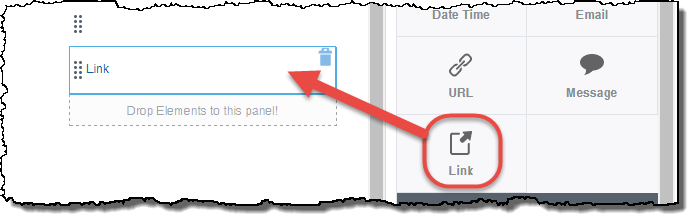

Follow these steps to workaround this issue.  In this example, the data element that actually contains the desired URL is called uRL.  First open the form in the web form design tool, and create a new element named uRLCalculated by dragging Link from the Basic Palette tab onto the form.

Link element added to a form

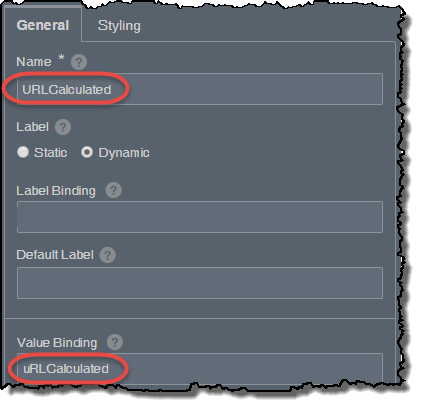

Instead of using the original uRL element for the field’s data binding, use uRLCalculated as the Value Binding for the field on the form.

Use urlCalculated for the Value Binding

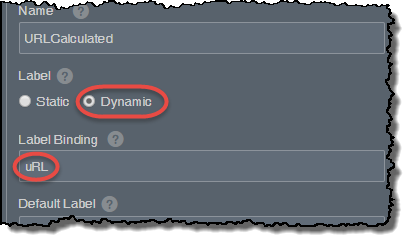

So that the correct link will displayed to the end user at runtime on the form, set the Label property to Dynamic and set the binding to use the original uRL data element for the field’s Label Binding property.

Set label to Dynamic and use the original uRL element













Under the Value Binding property, click the Computed Value checkbox -> click the Edit button beside it.

Computed value











Set the Type dropdown to Data Definition -> set the Value to the original uRL data element.

Computed value using the original uRL Element











Although the value in the new uRLCalculated data element will be lost when the form is submitted, the original uRL element that you really cared about will be carried back into the process data object.

About the Author

Dan Atwood

Dan has more than sixteen years of experience in all phases of design, development, and implementation of software applications using BPM. He has developed Oracle BPM, BAM, business rule and integration solutions for financial services, insurance, food cooperative, and telecommunications clients.
